4-core application compute
The RK3568B2 processor runs your Linux applications, services and embedded development tools.
4 × Cortex-A55 up to 2.0GHzRK3568B2 CONNECTED SINGLE-BOARD COMPUTER
ArmSoM Sige3
Connect your project.
Build something useful.
Quad-core RK3568B2 compute with 2.5G + Gigabit Ethernet, WiFi 6 and NVMe expansion for network services, media projects and embedded Linux development.
4 coresApplication processor
1 TOPSIntegrated NPU
8 GBMax. memory option
2.5 GbEPlus Gigabit Ethernet
COMPUTE. CONNECT. CREATE.SIGE SERIES
2.5GbE + GbE92 × 62mm
Application compute and practical I/O.
A compact board for your next build.
ENGINEERED FOR YOUR NEXT BUILD
A complete board. More room to build.
Combine application processing, network connections and expansion in one development platform.
1 TOPS on-device AI
Use the Rockchip NPU toolchain to convert supported models and validate inference on the target board.
1 TOPS · integrated NPUTwo wired network connections
Connect separate network segments or develop data and control services using the onboard Ethernet ports.
1 × 2.5G Ethernet + 1 × Gigabit EthernetExpand beyond onboard storage
Use the M.2 Key M connection for NVMe storage alongside onboard eMMC and a MicroSD card.
M.2 Key M · PCIe 3.0; verify lane configuration for the board revisionConnect your display
Develop a desktop, media application or information display with the documented hardware video resources.
4K display applicationsKeep the workbench connected
Onboard wireless, USB and the 40-pin header provide familiar connections for development and peripherals.
WiFi 6 + Bluetooth 5.3 (SYN43752)A CLOSER LOOK
Product Showcase
Official board views and processor architecture references from the product documentation.

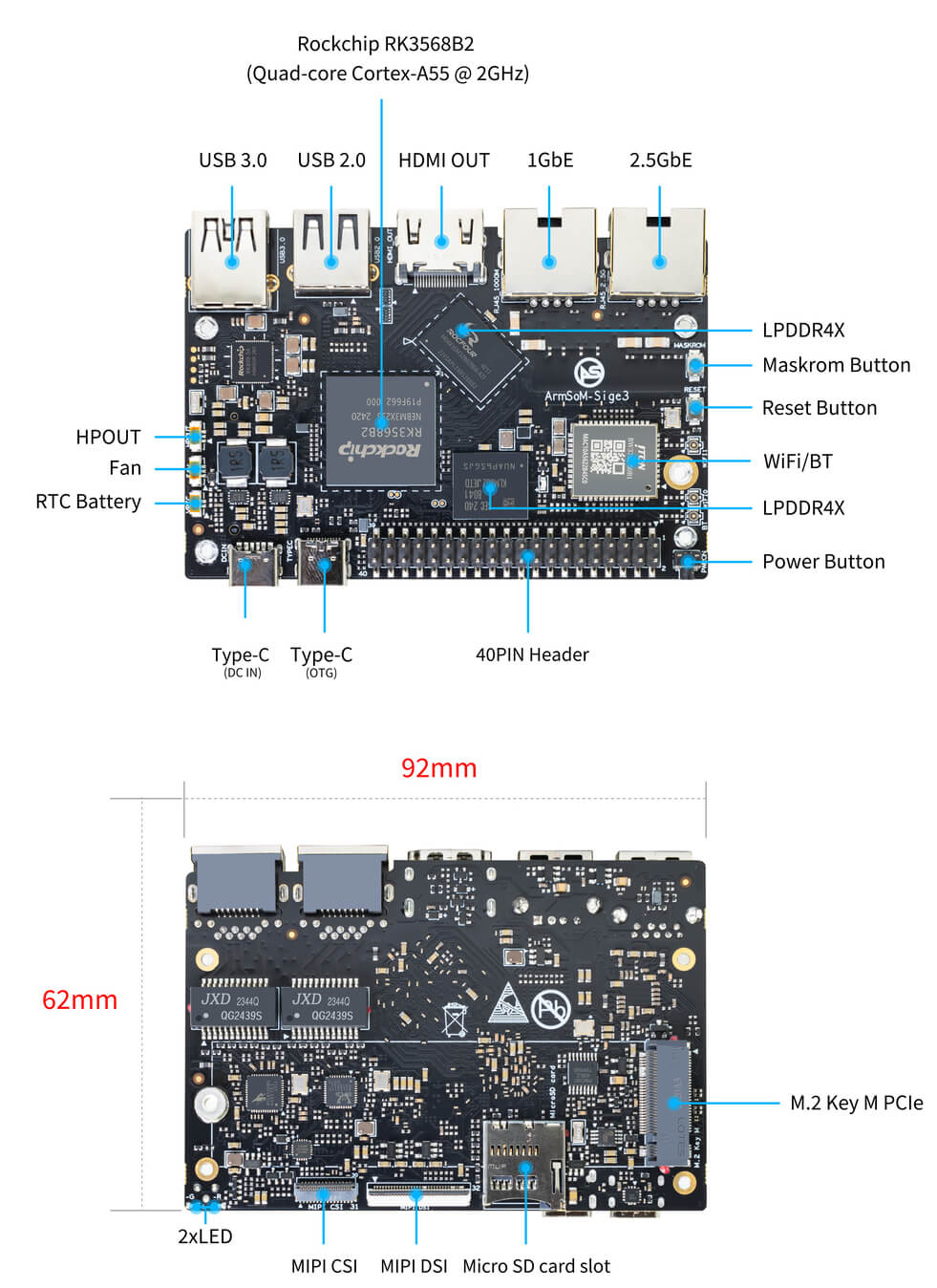

Front & rear hardware overview
Locate the network ports, storage, power input and expansion headers.
Select an image to open the full-resolution view.
ROCKCHIP · 22nm PROCESS
RK3568B2
Application processing with dedicated media and AI resources.
CPU4 application cores
GPUMali-G52
NPU1 TOPS
MemoryUp to 8GB
Networking2.5GbE + GbE
StorageeMMC + NVMe
BUILT TO WORK TOGETHER
Bring the parts of your application together.
Sige3 combines the RK3568B2 application processor with onboard memory, storage interfaces and wired and wireless connectivity.
Use the CPU for application logic and dedicated media or inference hardware where supported by your software. Choose a documented operating-system image, then validate your peripherals and workload.
Explore the hardware specifications ↗NETWORK + STORAGE
Build a connected Linux platform.
Combine wired networking, NVMe storage and your Linux application.
2.5GbE
Alongside a separate Gigabit Ethernet port
- 01
Connect the network
Configure the two Ethernet interfaces for your application.
- 02
Add your storage
Install a supported NVMe drive and prepare the system or data storage.
- 03
Deploy your services
Validate networking, storage and application behavior with your chosen image.
Port link rates and interface specifications do not guarantee application throughput. Verify performance with your software and network.
CONNECT YOUR DESIGN
Ready for the rest of your system.
Network, storage, displays and peripheral development on a compact SBC.
Dual Ethernet
2.5GbE + GbE
WiFi 6 + Bluetooth
Onboard wireless
M.2 Key M
NVMe storage expansion
HDMI output
4K display output
USB host + OTG
Peripheral and programming I/O
40-pin GPIO
UART / SPI / I²C / I²S / PWM
MicroSD + eMMC
System and data storage
Fan + RTC
Cooling and clock connections
ONE PLATFORM. MANY DIRECTIONS.
What will you build?
A flexible starting point for developers, makers and embedded product teams.
Edge applications
Combine local processing, network data and supported AI inference.
Media & displays
Develop a desktop, media player or information display with hardware video processing.
Network services
Build connected-device services and storage-backed local applications.
Embedded prototyping
Bring up sensors, peripherals and software before product integration.
THE DETAILS THAT MATTER
Technical specifications
Use this overview for selection and the full documentation for design-level details.
| Specification | ArmSoM Sige3 |
|---|---|
| Processor | RK3568B2 · 22nm |
| CPU | 4 × Cortex-A55 up to 2.0GHz |
| GPU | Mali-G52 |
| NPU | 1 TOPS (INT8) |
| Memory | LPDDR4x options up to 8GB; see store for available configurations |
| Storage | 8GB / 16GB / 32GB / 64GB eMMC options; MicroSD and M.2 NVMe expansion |
| NVMe expansion | M.2 Key M · PCIe 3.0; verify lane configuration for the board revision |
| Wired networking | 1 × 2.5G Ethernet + 1 × Gigabit Ethernet |
| Wireless | WiFi 6 + Bluetooth 5.3 (SYN43752) |
| Video decoding | Up to 4K60 H.265 / VP9 |
| Video encoding | Up to 1080p60 H.264 |
| Display outputs | HDMI 2.0b up to 4K60; see documentation for MIPI support |
| USB | USB host and Type-C OTG; consult board revision and image documentation |
| Expansion | 40-pin GPIO: UART / SPI / I²C / I²S / PWM; pin and voltage verification required |
| Other connections | Fan and RTC battery connectors; headphone and HDMI audio |
| Power | Dedicated Type-C power input; follow the Sige family power guide |
| Dimensions / weight | 92 × 62 × 14.6mm / 42.3g |
| Operating temperature | 0°C to 80°C |
| PCB | 8-layer PCB |
Sige3 currently uses a contact-sales purchase enquiry. Consult the documentation for board-revision-specific PCIe lane and USB configurations.
KEEP BUILDING
Documentation & developer resources
Hardware files, system images and source code, all within reach.
DebianBuildrootArmbian
010203040506
Product documentation
Specifications and pin definitions
Getting started
Sige family setup and interface guide
System images
Official and community download links
Hardware design files
Schematics and board resources
Linux source code
ArmSoM Rockchip kernel repository
Image flashing
Prepare and install a system image
Operating-system versions and supported peripherals vary by image. Use the current product documentation to choose a release.
BEFORE YOU BUILD
Frequently asked questions
What processor does Sige3 use?
Sige3 uses the Rockchip RK3568B2 with 4 × Cortex-A55 up to 2.0GHz. It is a complete single-board computer, with onboard network and display connections.
Can I expand the storage?
Yes. The documented storage interfaces include onboard eMMC, MicroSD and M.2 Key M · PCIe 3.0; verify lane configuration for the board revision. Check mechanical clearance, SSD compatibility and system support before installation.
Which Type-C port is for power?
Use the dedicated power input identified in the hardware diagram. The other Type-C connector serves data or OTG functions. Follow the Sige family power guide.
Can I attach Raspberry Pi accessories?
The 40-pin header exposes familiar peripheral signals. Check the exact pin assignment, voltage, driver and device-tree configuration before attaching an accessory.
How do I start with AI inference?
The documented NPU capability is 1 TOPS. Use the matching Rockchip toolchain and image for supported models, then validate model accuracy and real application performance.
