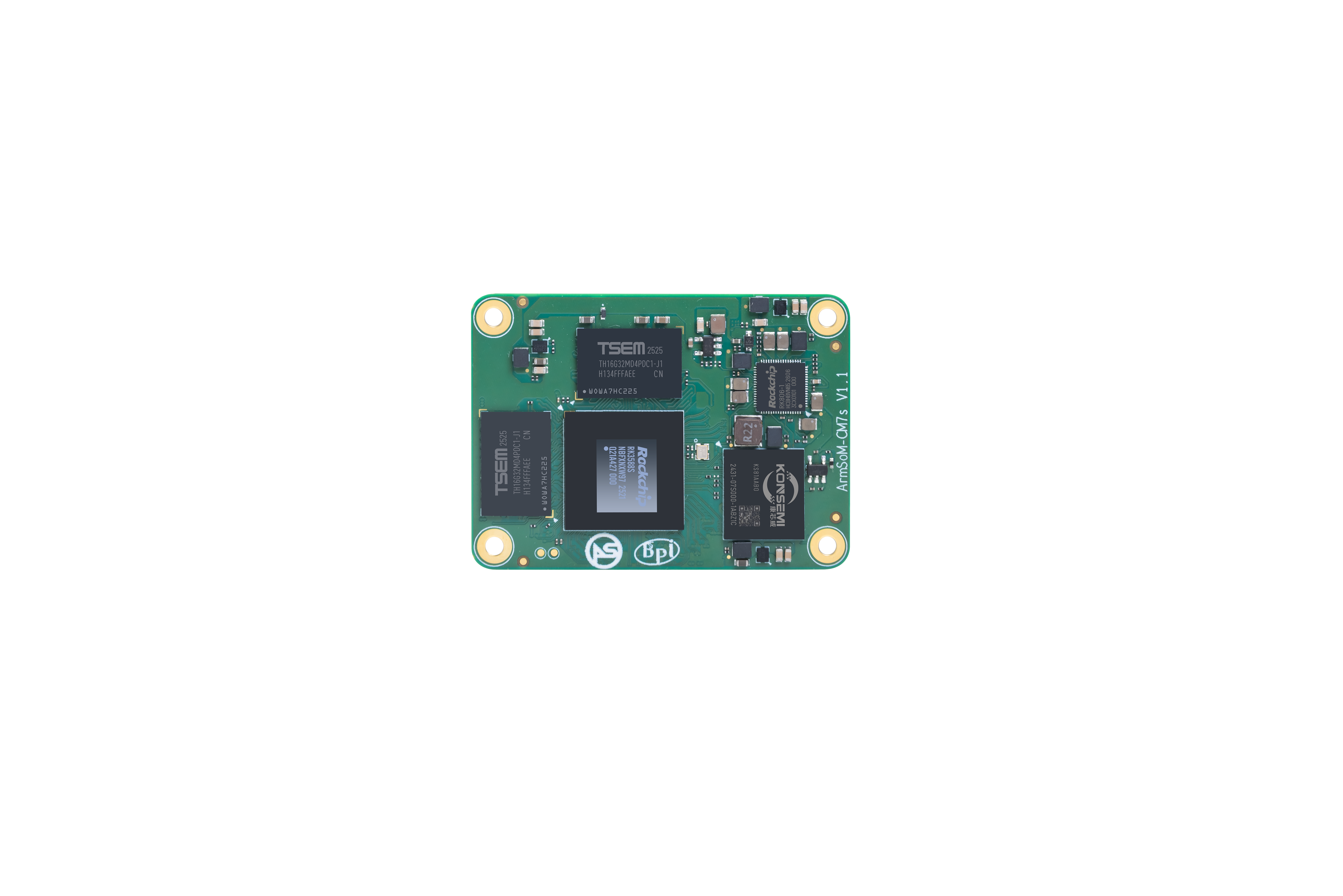

ArmSoM-CM7s : Compact in size yet powerful in performance, purpose-built for deeply embedded applications.
It features the flagship Rockchip RK3588S octa-core 64-bit processor (4× Cortex-A76 @ 2.4 GHz + 4× Cortex-A55 @ 1.8 GHz) on an advanced 8 nm process node, delivering outstanding compute performance with excellent power efficiency. The integrated ARM Mali-G610 high-performance GPU offers full compatibility with OpenGL ES 3.2, OpenCL 2.2, and Vulkan 1.2 graphics APIs. A built-in 6 TOPS NPU supports INT4/INT8/INT16 mixed-precision operations, enabling effortless on-device AI inference.
The module provides a rich set of bus and expansion interfaces with multiple eMMC storage options, making it ideal for a wide range of industrial IoT, edge computing, and intelligent terminal applications.
CM7s Features:
- SoC: Rockchip RK3588S (8 nm LP process)
- CPU: Octa-core 64-bit (4× Cortex-A76 @ 2.4 GHz + 4× Cortex-A55 @ 1.8 GHz)
- GPU: ARM Mali-G610 3D GPU, supporting OpenGL ES 3.2 / OpenCL 2.2 / Vulkan 1.2
- NPU: 6 TOPS, supporting INT4/INT8/INT16 mixed-precision computation
- RAM: 2 / 4 / 8 / 16 / 32 GB LPDDR4 / LPDDR4X
- eMMC: 32 / 64 / 128 / 256 GB
- Interfaces: 3× 100-pin board-to-board connectors (DF40C-100DP-04V), supporting Type-C / DP 1.4, HDMI 2.1 / eDP 1.3, MIPI D-PHY / CSI, USB 3.0 / 2.0, SATA III / PCIe 2.0, SDIO 3.0 / RGMII, SDMMC, and multiplexed buses / control pins including I2C / I2S / UART / SPI / CAN / PWM / GPIO
- Power Input: DC 5 V, max. 2,500 mA
- Power Output: DC 3.3 V, max. 600 mA; DC 1.8 V, max. 600 mA
- PCB Dimensions: 55 × 40 × 1.6 mm (L × W × H)
- Documentation:
Please reach out for us for your customized and huge volum orders: sales@armsom.org
You can also conveniently order from our AliExpress store：aliexpress
US Customs Duty Prepayment Notice
25% of the product value is prepaid to ensure smooth clearance (this amount will be listed as "sales tax" at checkout). No additional duties upon delivery.
In The Box:
1x CM7s board
1x CM7s Basic board
1x CM7s IO board
1x CM7s Maker Kit (CM7s + CM7s-IO)
*2x Antenna are sold separately
